Switch Module Kit - Long Range

Switch Module Kit - Long Range

Regular price $139.00
Regular price Sale price $139.00
Sale Sold out

SKU:SMK-1LR

In stock

What it is:

A simple kit that lets you control your lights wirelessly without complex installation. Keep the same style as your existing switches - no drilling or complicated wiring needed. Using long range RF technology, it works at distances over 300 meters.

How it works:

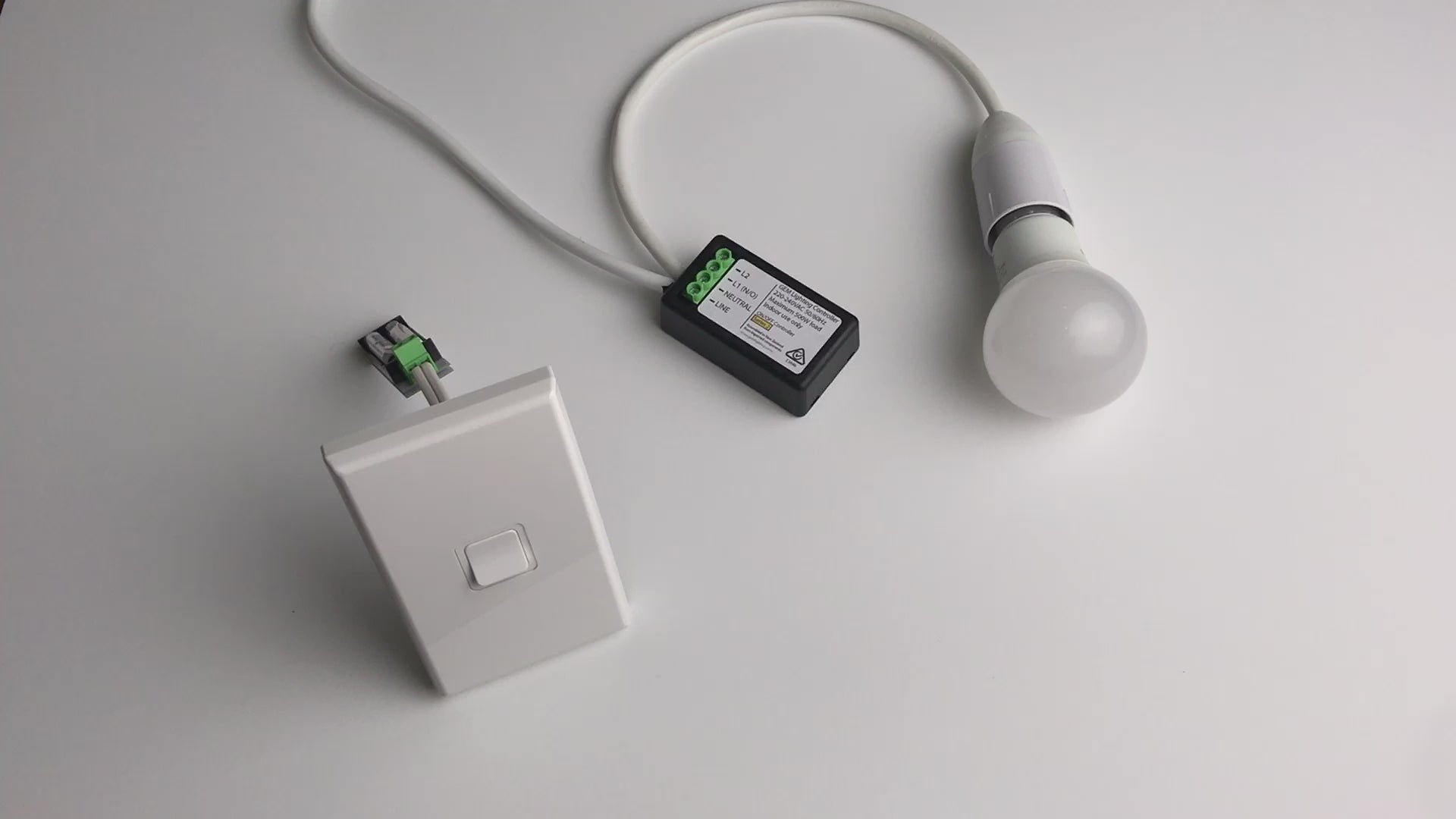

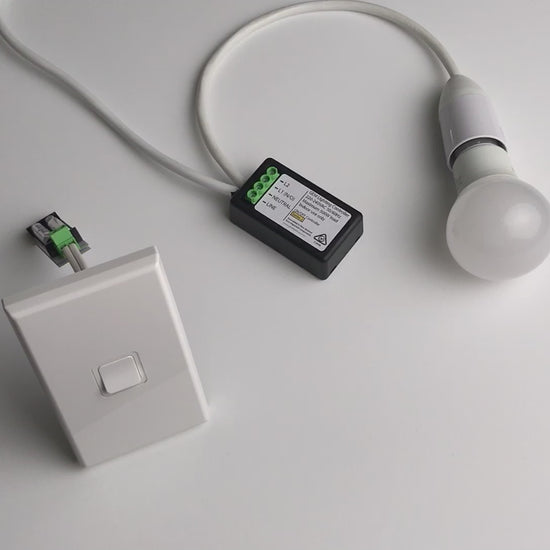

When the battery-powered switch module senses a change in the attached switch, it transmits to the receiver to switch the lights (see the video).

Quick specs:

Receiver supply 100-240VAC 50/60Hz
Maximum load 6A
Receiver dimensions 73mm x 43mm x 26mm
Module dimensions 59mm x 20mm x 18mm
Wireless range 300+ meters (915MHz)
Battery life 5 years (AAAA)

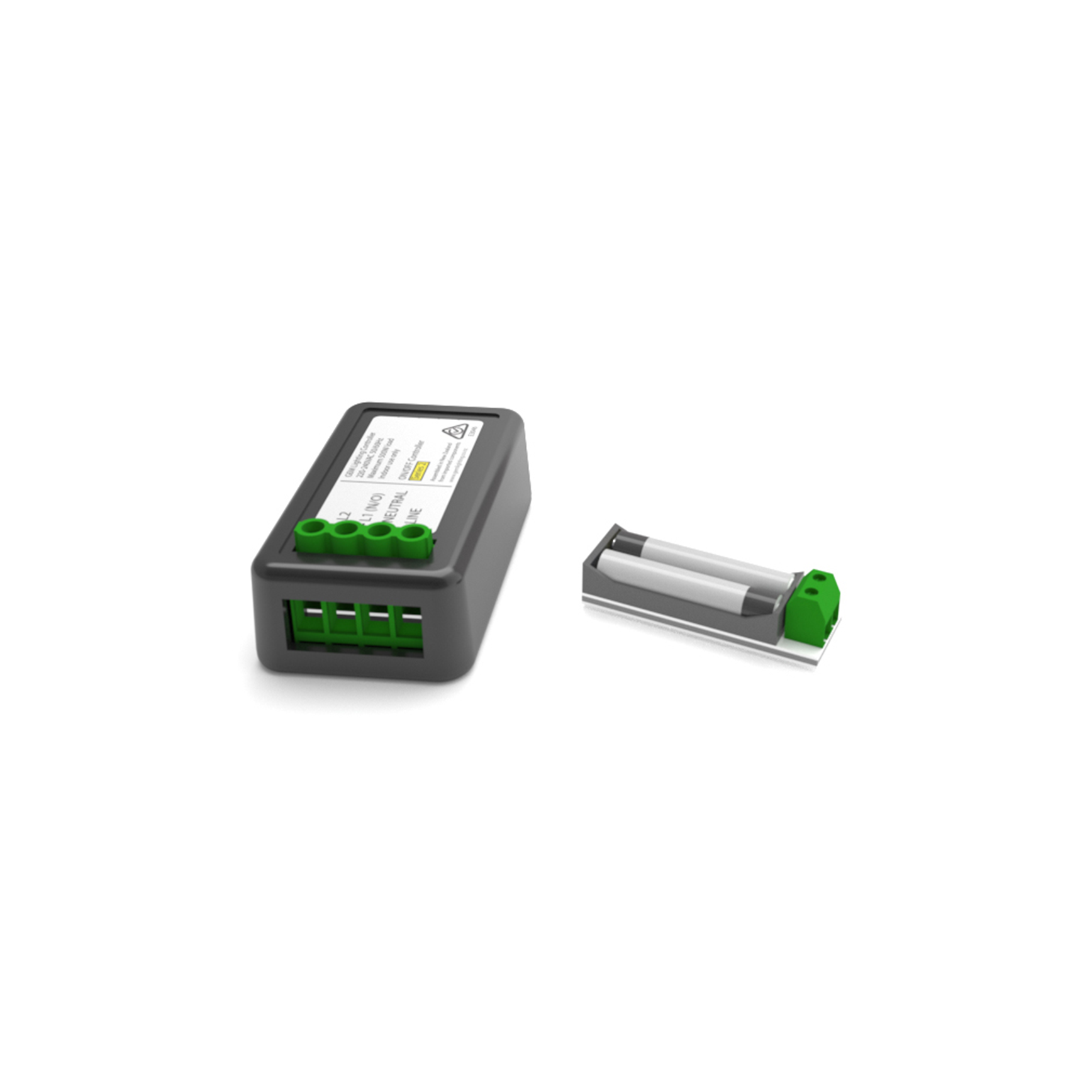

Inside the box, you will find:

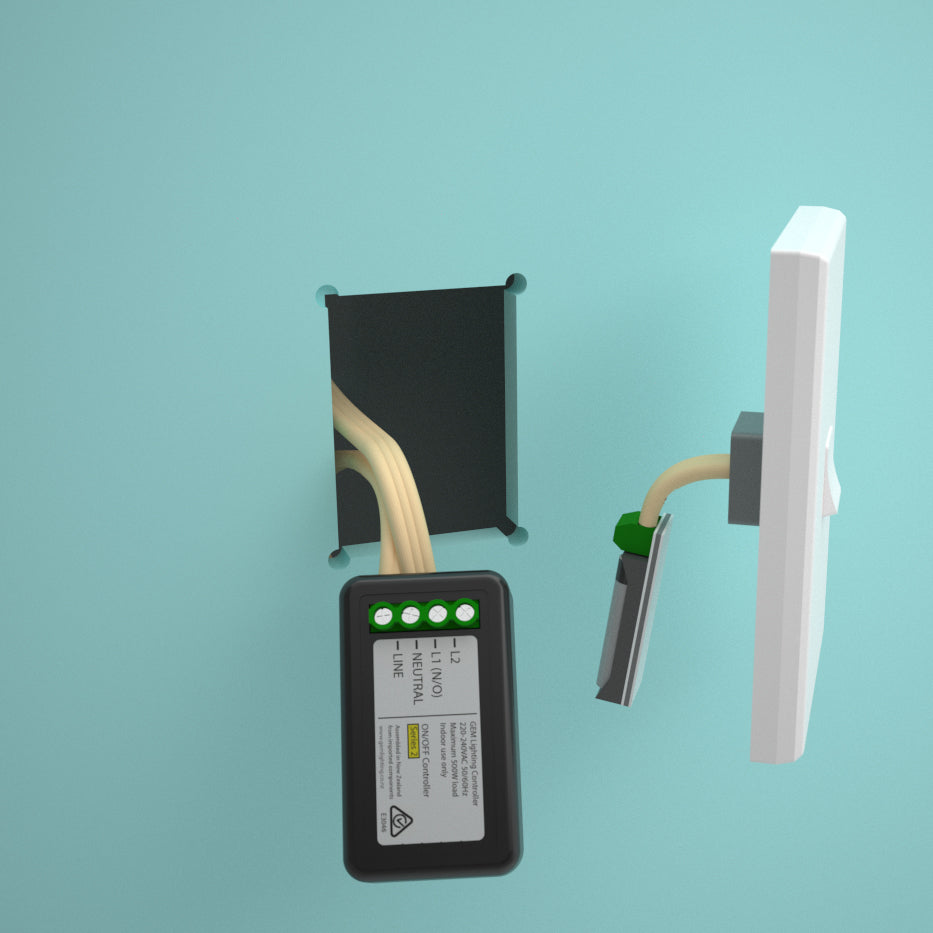

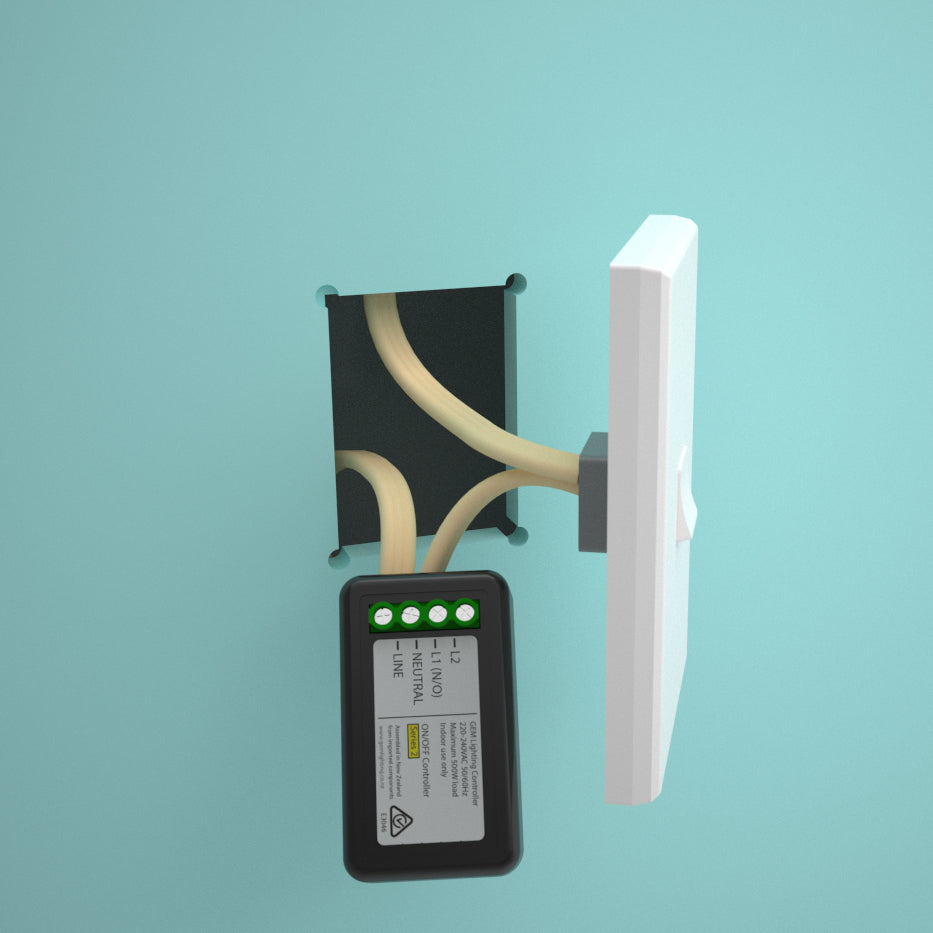

  • Long Range Wireless Receiver with integrated relay.
  • Long Range Wireless Switch Modules including AAAA batteries.
  • A Wiring Guide and Installation Instructions.

Installation options:

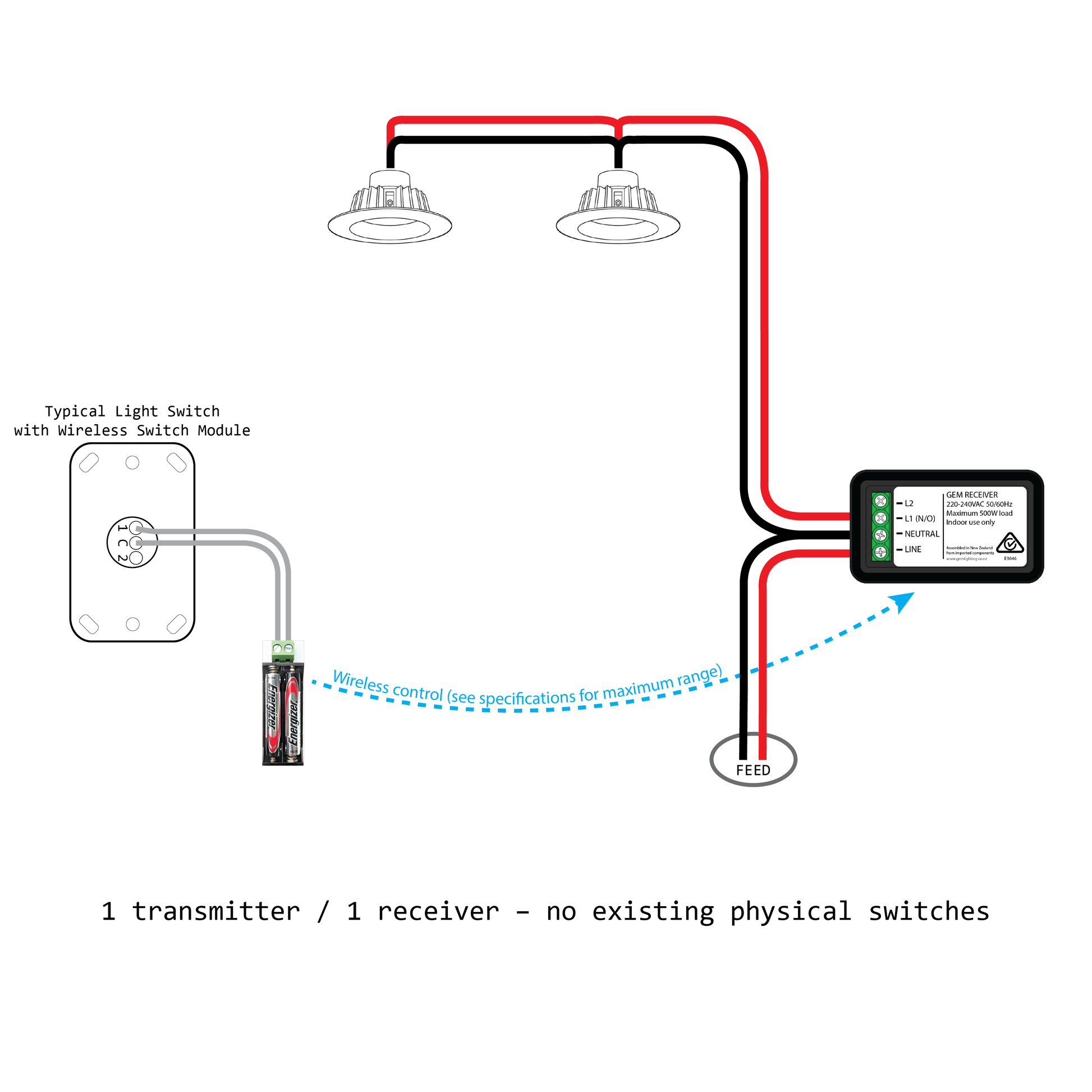

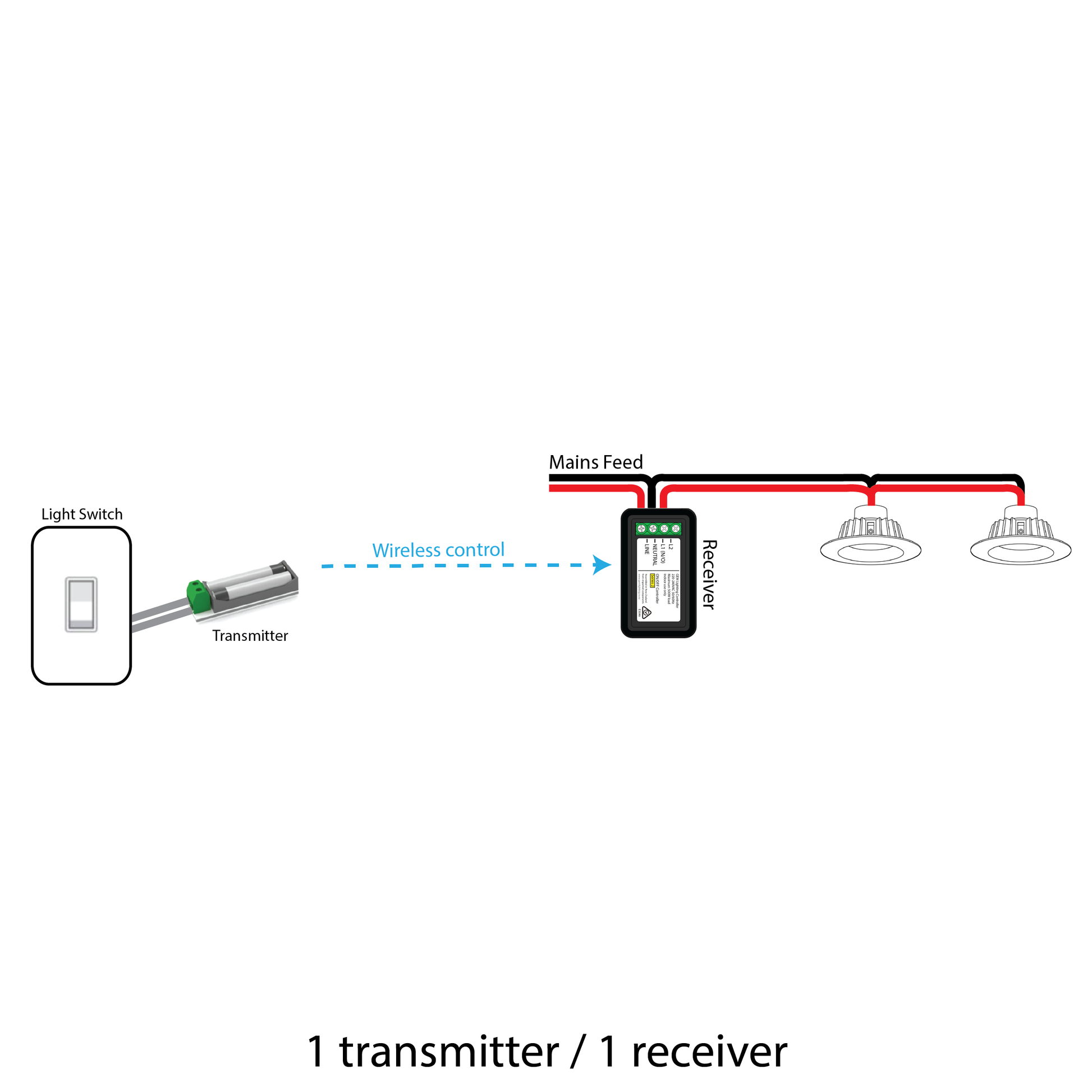

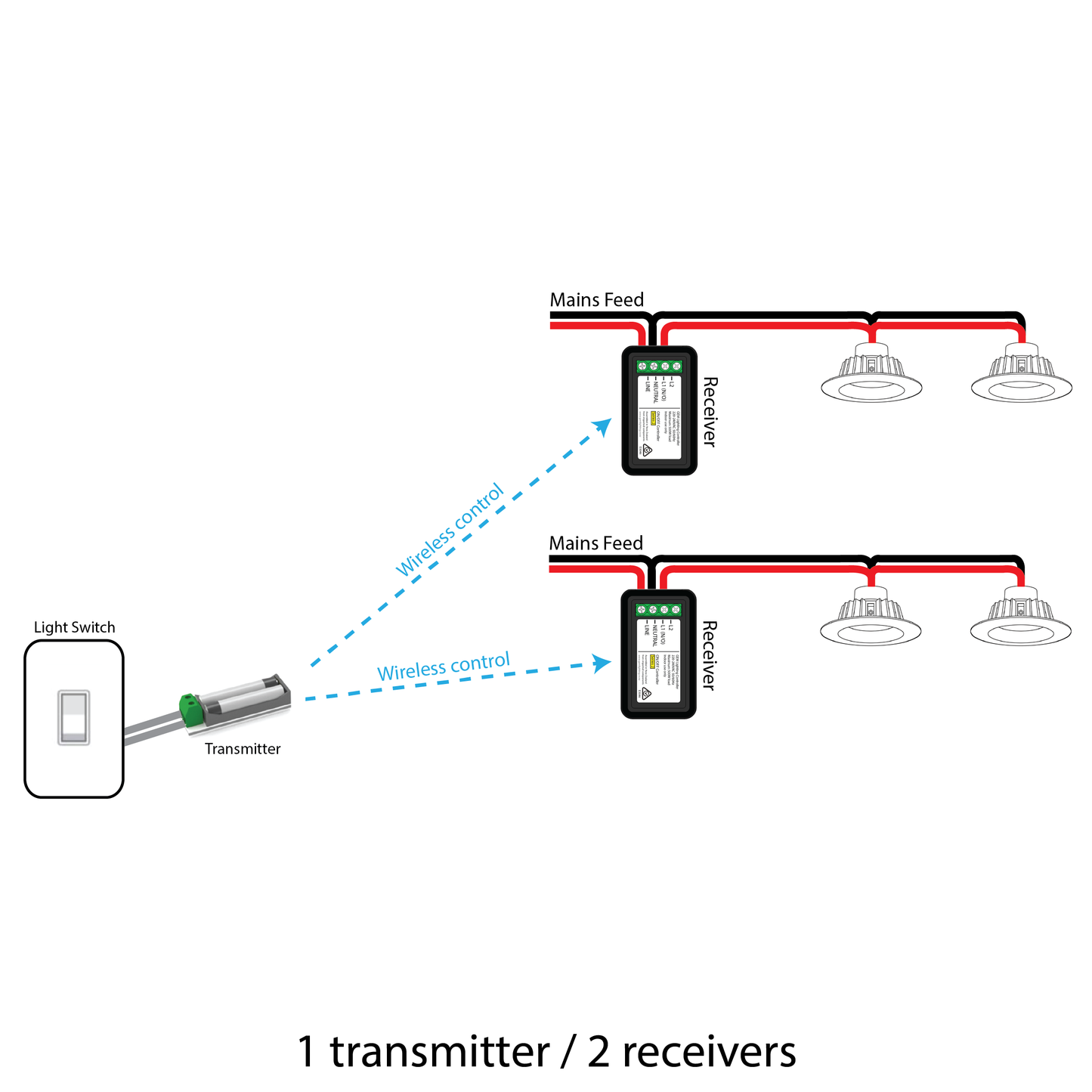

  •  Standalone setup: Connect the receiver directly to your lights to use wireless switches only.
    Standalone setup diagram

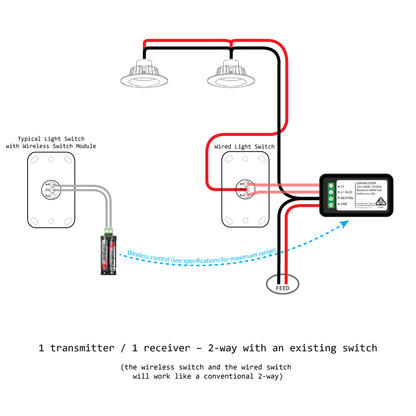

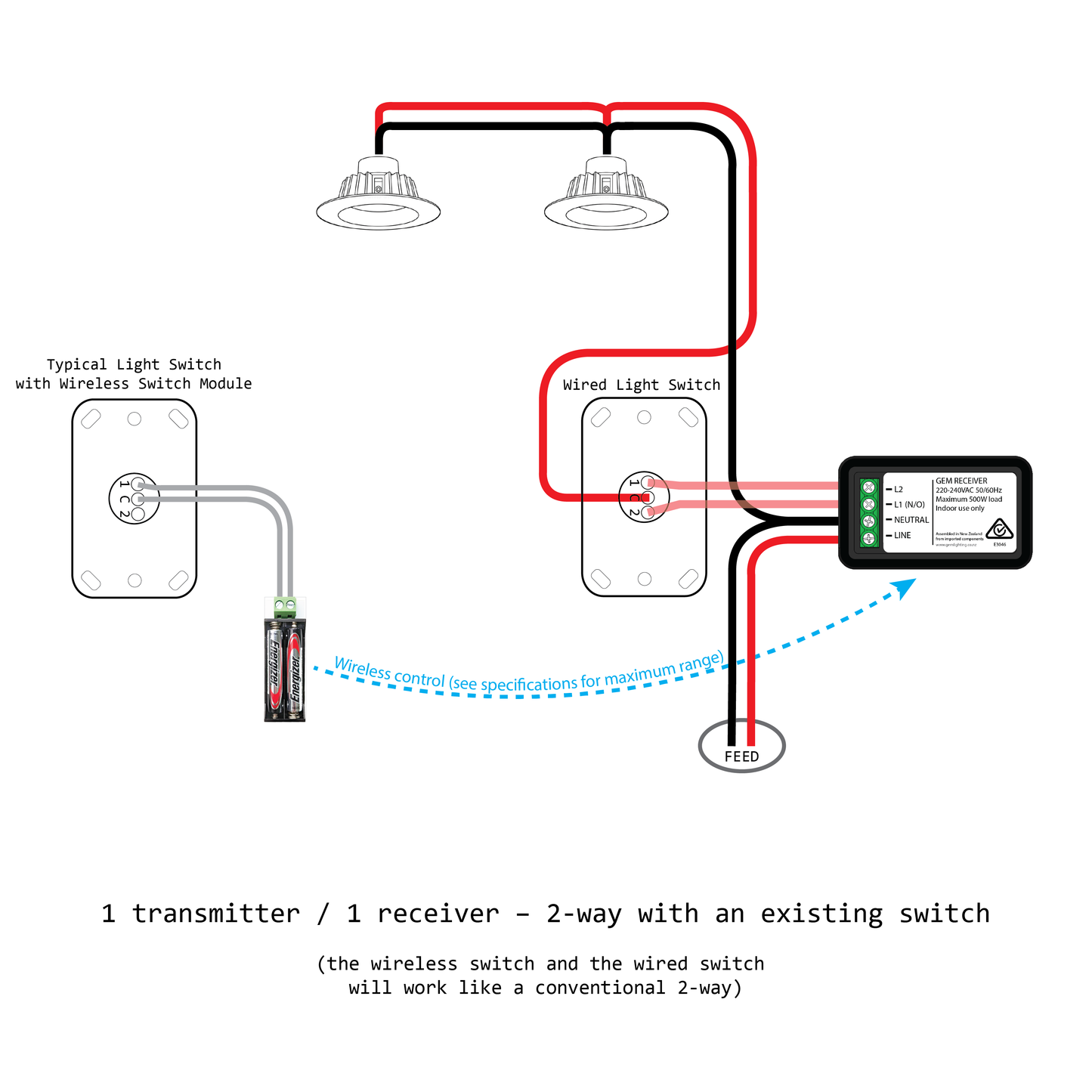

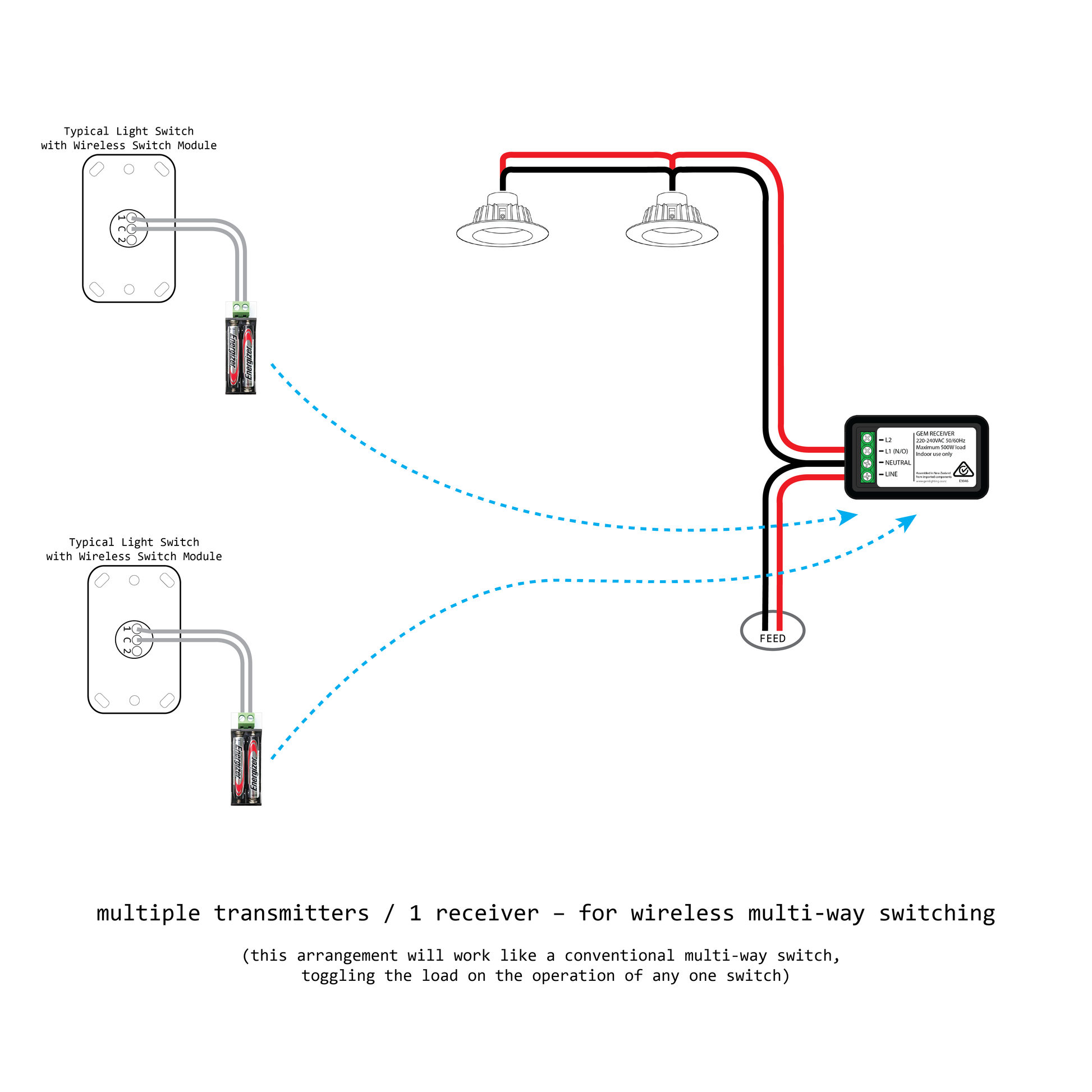

  • Add on to an existing switch: Connect the receiver to your current switch to use both the physical switch and wireless switch in a 2-way arrangement.
    With existing setup diagram

Quick tip: Already have a light switch? You only need the 1-transmitter kit to add another switch location for a 2-way setup. View the wiring diagram here.

Key features:

  • No WiFi needed.
  • Switch and receiver come pre-paired.

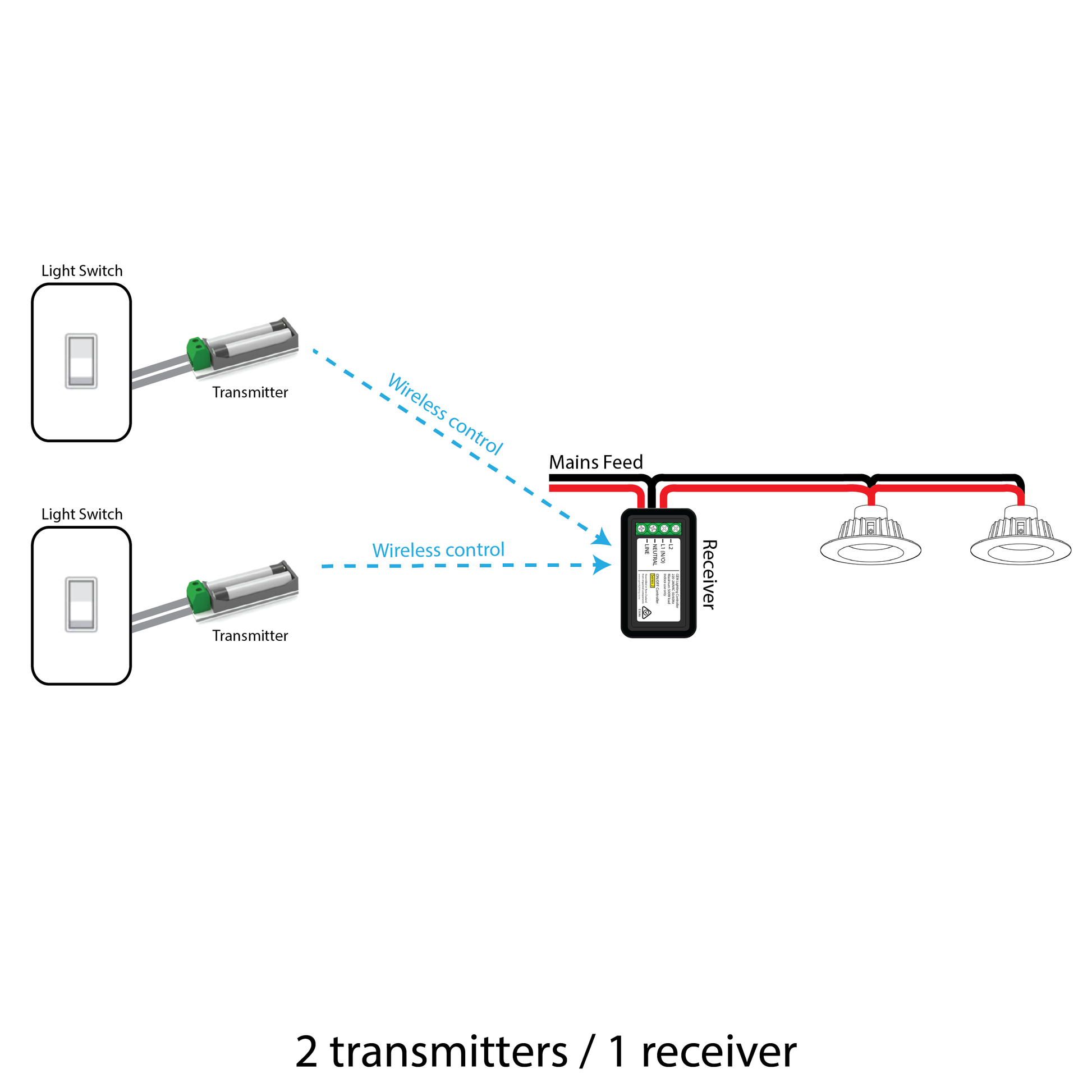

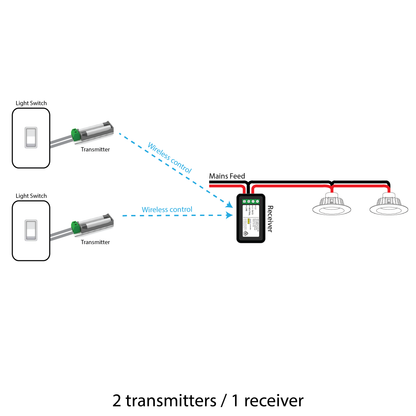

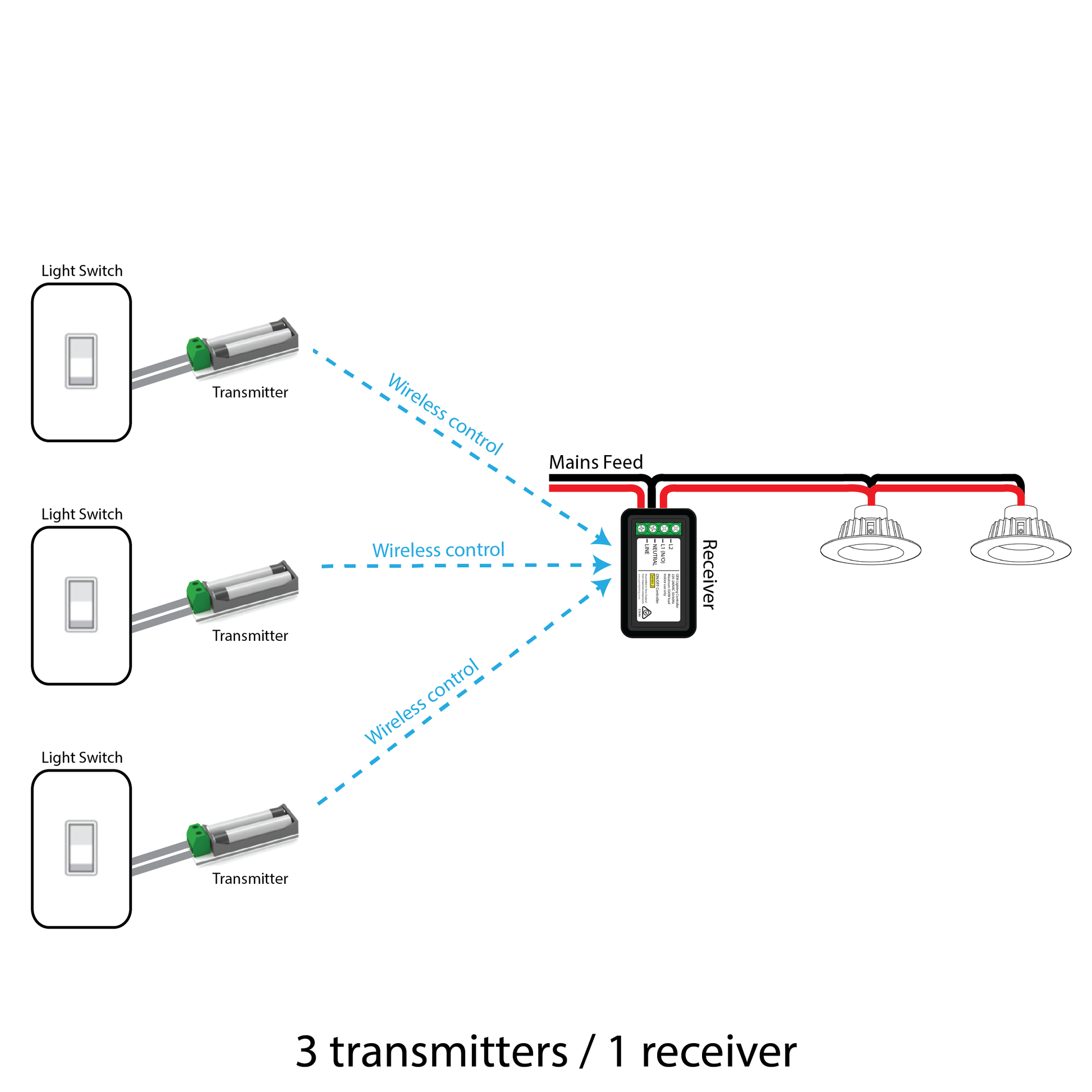

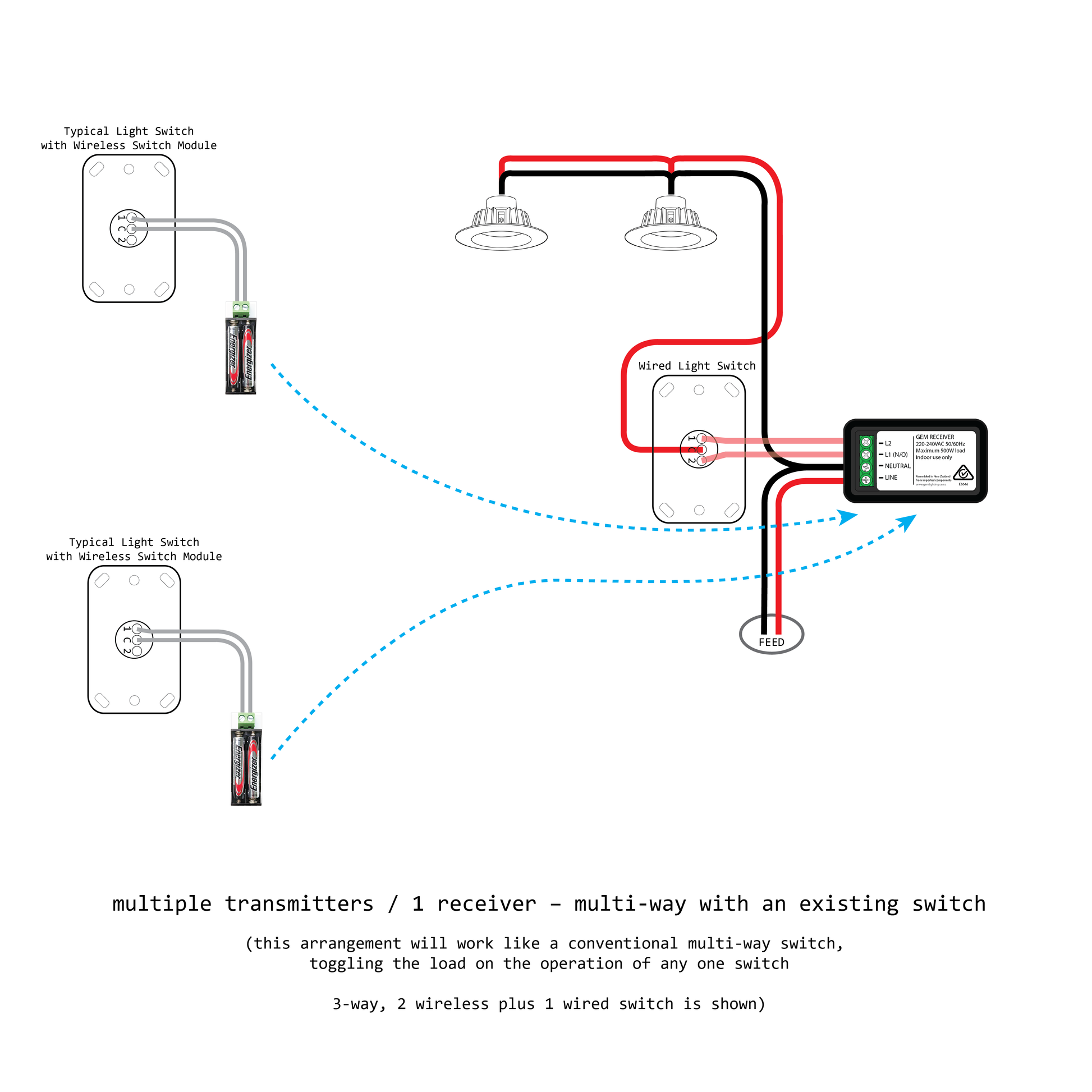

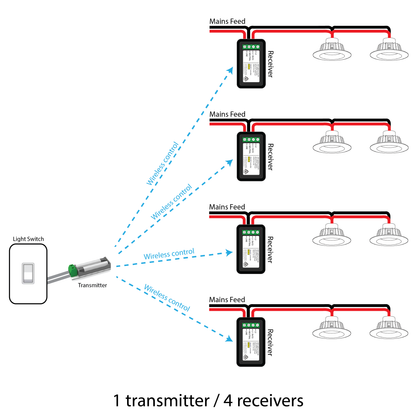

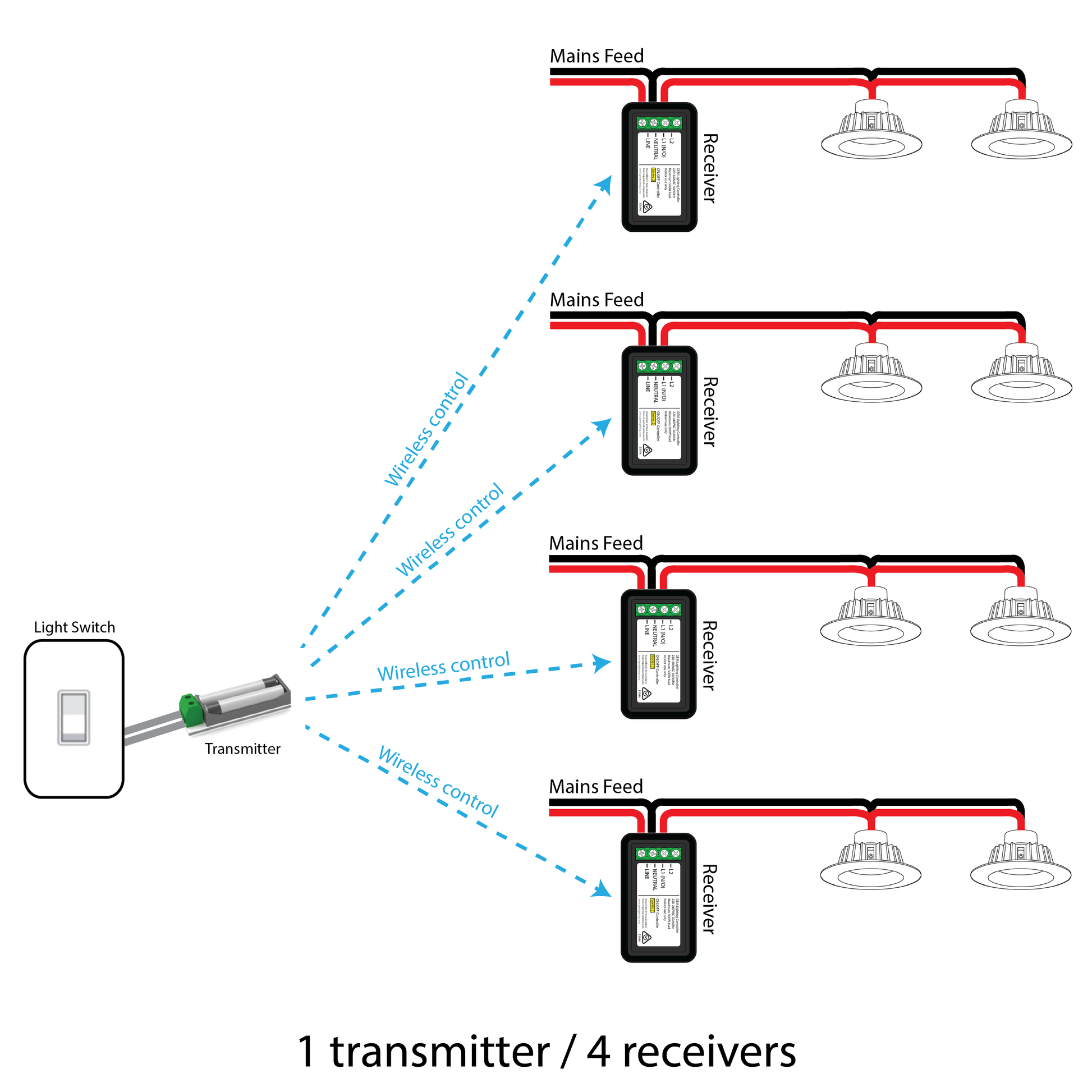

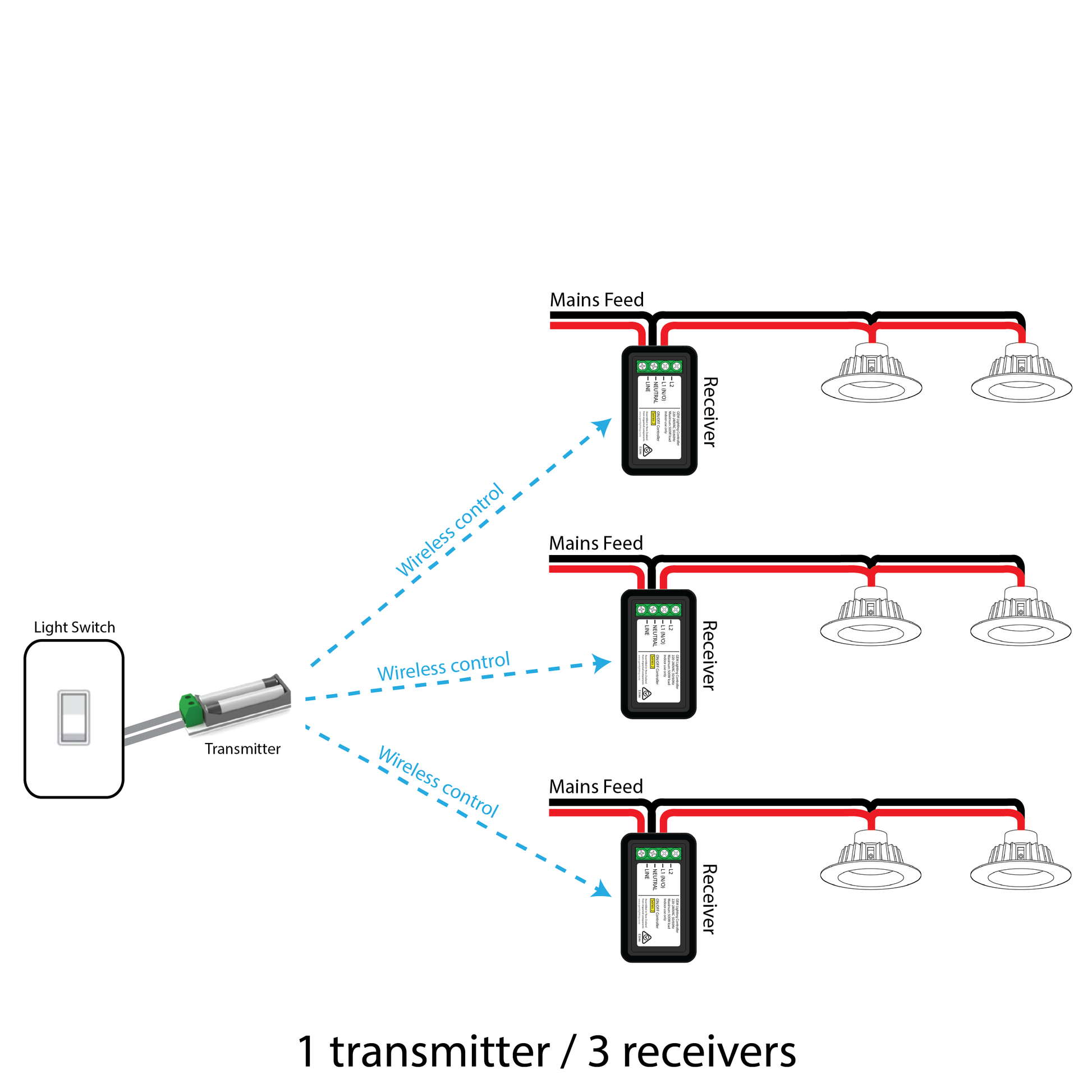

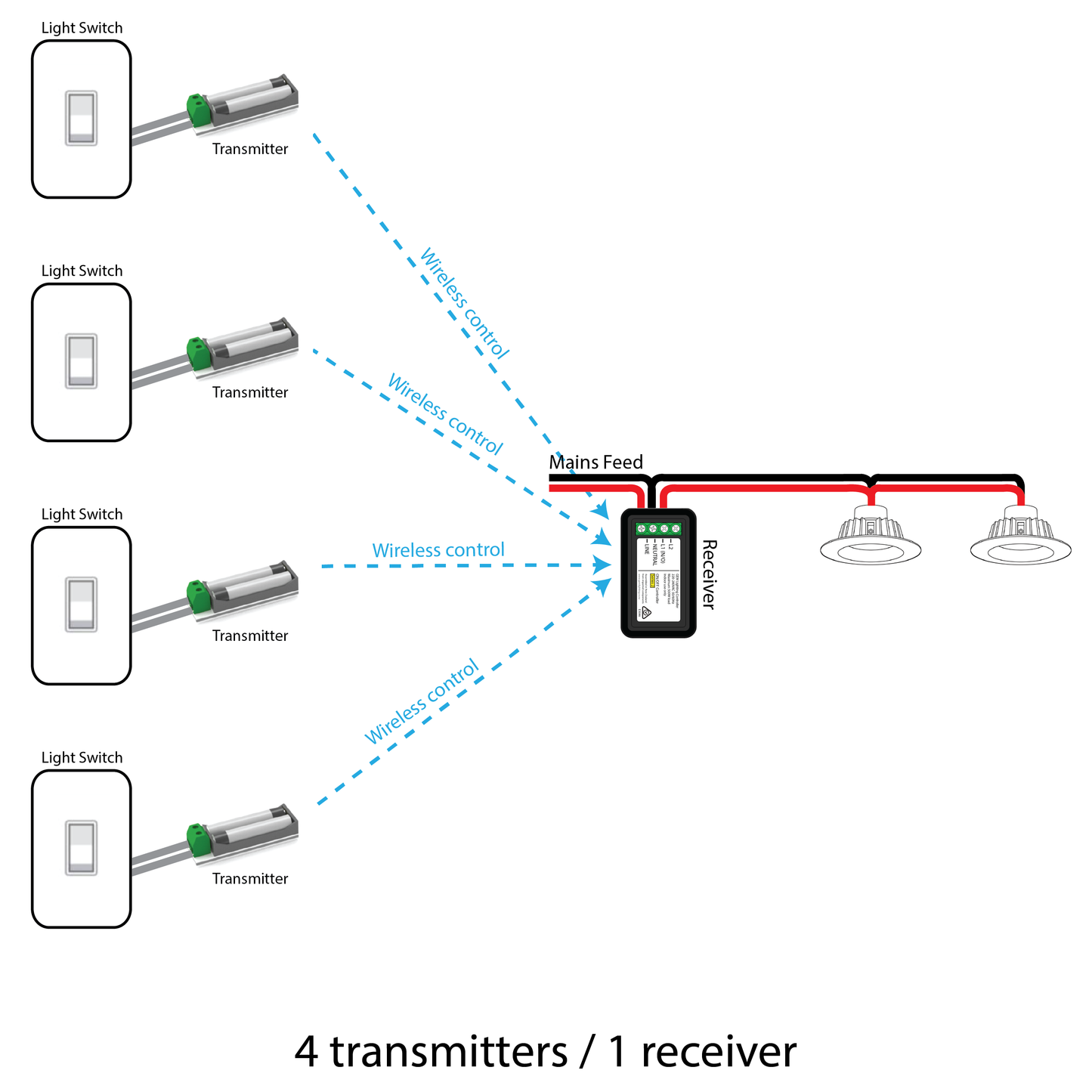

  • Order multiple transmitters to switch lights from different locations.
  • Signal works over 300 meters range through walls and obstacles.
  • Use multiple kits in the same location without interference.
  • Long battery life (5 years).
  • Reliable connection with no interference from other wireless devices.

Tips for best use:

  • Contactors and relays with AC coils can emit electromagnetic noise. If you intend to use such equipment nearby, ensure that there is at least 600mm separation from the receiver.
  • Ambient temperature maximum is 45°C. Avoid enclosing the receiver with sources of heat like drivers, transformers, or luminaires.
  • Metal casings can reduce the wireless range. Where possible, avoid using metal enclosures to house the units.
  • Need to control gates or other momentary pulse loads? Contact our support team and we'll provide a special version designed for this purpose.

The GEM Switch Module Kit - Long Range is designed and assembled in New Zealand. The product complies with the relevant AS/NZS standards and is fit for sale in Australia and New Zealand. All GEM products have a 2 year replacement warranty.

View full details

What it is:

A simple kit that lets you control your lights wirelessly without complex installation. Keep the same style as your existing switches - no drilling or complicated wiring needed. Using long range RF technology, it works at distances over 300 meters.

How it works:

When the battery-powered switch module senses a change in the attached switch, it transmits to the receiver to switch the lights (see the video).

Quick specs:

Receiver supply 100-240VAC 50/60Hz
Maximum load 6A
Receiver dimensions 73mm x 43mm x 26mm
Module dimensions 59mm x 20mm x 18mm
Wireless range 300+ meters (915MHz)
Battery life 5 years (AAAA)

Inside the box, you will find:

  • Long Range Wireless Receiver with integrated relay.
  • Long Range Wireless Switch Modules including AAAA batteries.
  • A Wiring Guide and Installation Instructions.

Installation options:

  •  Standalone setup: Connect the receiver directly to your lights to use wireless switches only.
    Standalone setup diagram
  • Add on to an existing switch: Connect the receiver to your current switch to use both the physical switch and wireless switch in a 2-way arrangement.
    With existing setup diagram

Quick tip: Already have a light switch? You only need the 1-transmitter kit to add another switch location for a 2-way setup. View the wiring diagram here.

Key features:

  • No WiFi needed.
  • Switch and receiver come pre-paired.
  • Order multiple transmitters to switch lights from different locations.
  • Signal works over 300 meters range through walls and obstacles.
  • Use multiple kits in the same location without interference.
  • Long battery life (5 years).
  • Reliable connection with no interference from other wireless devices.

Tips for best use:

  • Contactors and relays with AC coils can emit electromagnetic noise. If you intend to use such equipment nearby, ensure that there is at least 600mm separation from the receiver.
  • Ambient temperature maximum is 45°C. Avoid enclosing the receiver with sources of heat like drivers, transformers, or luminaires.
  • Metal casings can reduce the wireless range. Where possible, avoid using metal enclosures to house the units.
  • Need to control gates or other momentary pulse loads? Contact our support team and we'll provide a special version designed for this purpose.

The GEM Switch Module Kit - Long Range is designed and assembled in New Zealand. The product complies with the relevant AS/NZS standards and is fit for sale in Australia and New Zealand. All GEM products have a 2 year replacement warranty.
